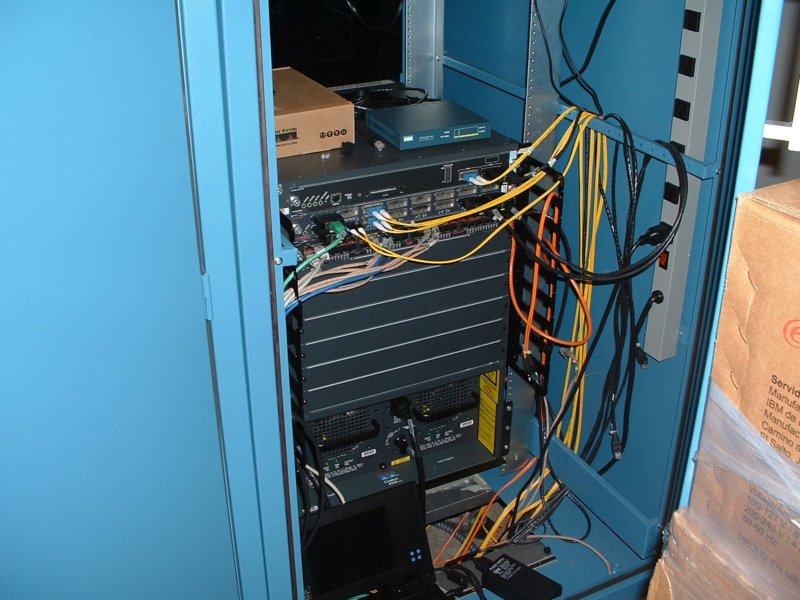

This is in the computer room in the basement of EWFMB. This is a Cisco 6509 router similar to the ones in Packard Lab. The yellow fiber at the top of the pic connects to the Backbone switch we saw in Packard. Barely visible in this pic is the black copper cable to its right that connects to the backbone switch located a few feet away in EWFMB. The fiber and copper connections to this router feed the outlying buildings in the EWFM area.
