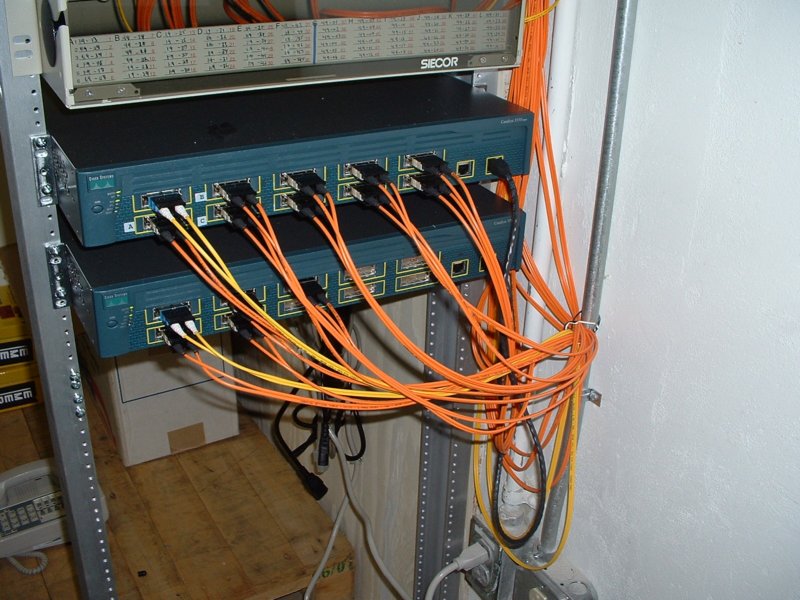

Here are the main switches for RBC. These are the same type of switches we've seen in room 004, but instead of having 48 10/100 ports and 2 fiber Gigabit Ethernet (GBE) ports, these switches have 12 Gigabit Ethernet ports. This is the center of the star network for RBC. Each GBE port connects to another switch in the building except for two of these GBE fiber pairs that travel over to the redundant Network Routers located in Packard Lab. Ir this pic the yellow fiber travels over to Packard.
