MSA

---

MSA>Utilities>Spatial sub SI

Current Function Version: 1.0 (Oct./30/'08)

Brief Description
This function extracts a selected area from an existing 2D or 3D spectrum image and shows the selected sub area as a new spectrum image.

Usage
Case 1: 2D spectrum image

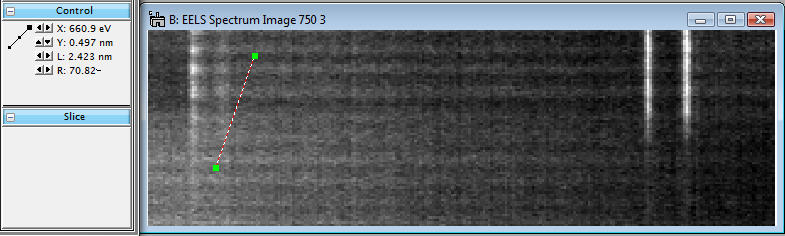

Open a 2D spectrum image and select a sub area to be extracted using the LineROI tool . (note: you do not have to draw a perfectly perpendicular line)

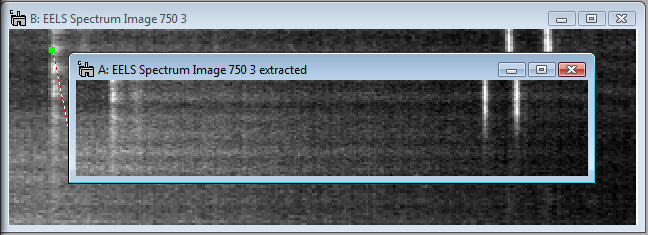

Then, select MSA>Utilities>Spatial sub SI from the menu bar. A new 2D spectrum image appears.


Case 2: 3D spectrum image

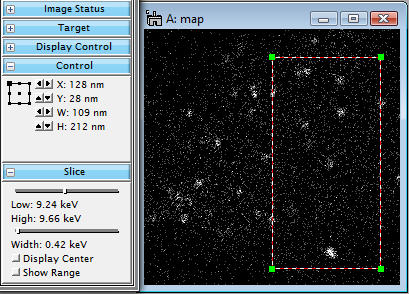

Open a 3D spectrum image and select a sub area using the RectangleROI tool .

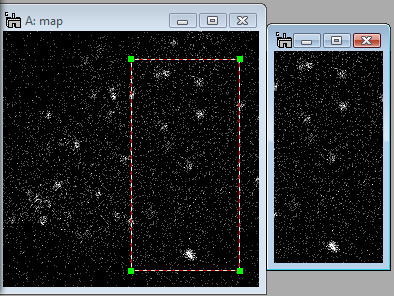

Then, select MSA>Utilities>Spatial sub SI from the menu bar. A new 3D spectrum image appears.

---
